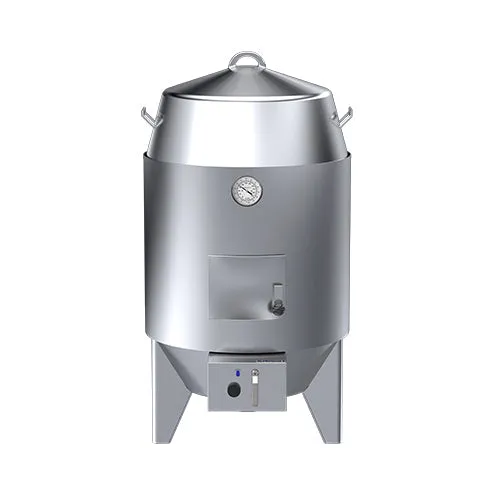

LUUS Asian Series Duck Oven Single Roasting Burner 810mm - DRO-810
S Ideal for roasting duck, pork, and other meats
12 duck capacity using hanging rail
Easy top access via lift-off lid
External temperature gauge
Waste release valve and overflow pipe
High temperature cut-off safety feature
Durable Zinc-aluminum Alloy burner handle
1.2mm 201 stainless steel body
24 month Platinum Warranty
Easy to clean and service
Roaster
83mj cast iron nozzle burner with pilot & FFD
12 duck capacity using hang rail
External termperature gauge
Convenient burner/servicing access via door
Zinc-aluminium Alloy burner handle
Waste release ball valve
Overflow pipe built into bottom of unit
High temperature cut-off safety feature
Overall Construction
Heavy duty 4 piece assembly
1.2mm 201 stainless steel lid with handle
1.2mm 201 stainless steel panels
Assembled with fixed position legs
Dimensions
810mm x 810mm x 1530mm H
Weight 42kg
Packed dimensions 940mm x 860mm x 1470mm H
Packed weight 69kg
Connections
Gas 3/4 BSP male
Gas 220mm from left, 50mm from front, 200mm from floor
Supplied with gas regulator (specify Nat or LP on order)
Drain 1 BSP female
Drain 180mm from left, 400mm from front, 180mm floor
Cleaning & Servicing
Easy access to all parts & components from front
